Mobile X-Ray System

Brand: Sternmed

Model & Specifications
Xenox M70
Xenox M90

Magnetic Resonance Imaging (MRI)

Brand: Sternmed

Model & Specifications

Marcom 0.35T

Marcom 0.5T

Marcom 1.5T

Radiography System

Brand: Sternmed

Model: Xenox RAD 400

Sample text. Lorem ipsum dolor sit amet, consectetur adipiscing elit nullam nunc justo sagittis suscipit ultrices.

SEE SPECIFICATIONS learn more

Radiography System

Motor-Driven Mobile DR X-ray System

Brand: Sternmed

Model: Xenox M100 Plus

SEE SPECIFICATIONS

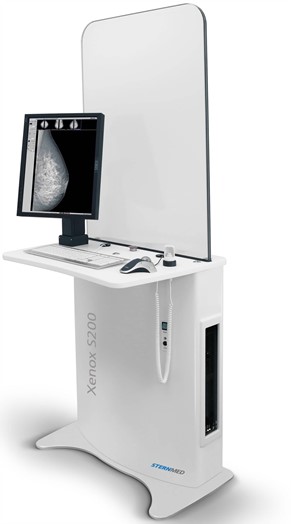

Full-field Digital Mammography System

Brand: Sternmed

Model & Specification: Xenox S100

Model & Specification: Xenox S200

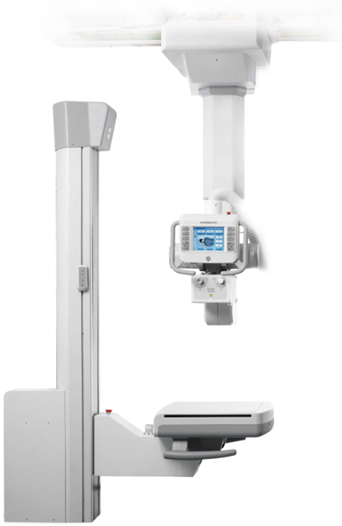

Digital Radiography System

Brand: Sternmed

Model & Specification: Xenox RAD 400

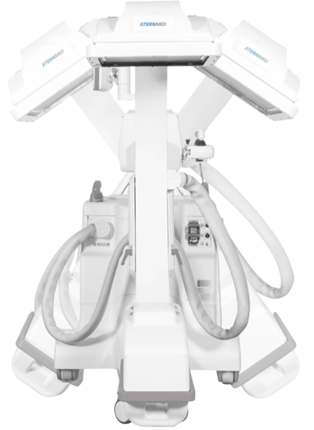

Mobile C - Arm

Brand: Sternmed

Model & Specification: Xenox C300 & C400

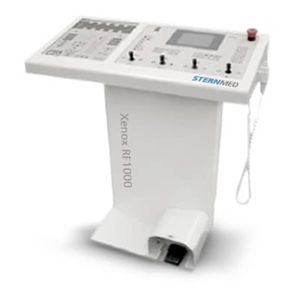

Model & Specification: Xenox RF1000

Fluoroscopy

Brand: Sternmed

TECHNICAL SPECIFICATION

Sample text. Lorem ipsum dolor sit amet, consectetur adipiscing elit nullam nunc justo sagittis suscipit ultrices.

16 slice Helical CT Scanner
0.5s/360°, fully satisfies clinical demand
Ultra-Fast rare earth ceramic detector
24 rows detector, one disc rotation collects 16 slices images
21504 detector units; minimum slice thickness is 0.625mm
Coverage of each single scan is 20mm
Multiple X-ray dose reduction technology
Intelligent scattering line automatic elimination technology
Intelligent operation process
High image quality
Fast scan speed
120 Second Non-Stop scanning
Low x-ray dosage

Computed Tomography

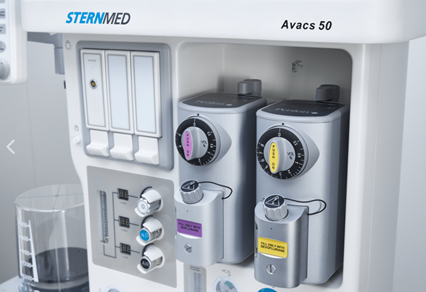

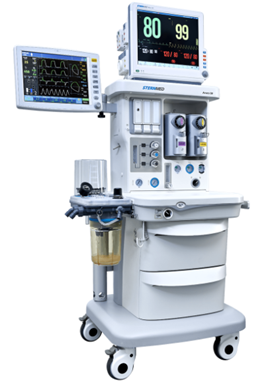

Anesthesia Machine

Brand: Sternmed

Model & Specification: Avacs 50

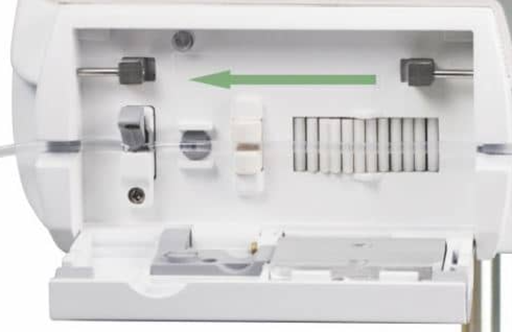

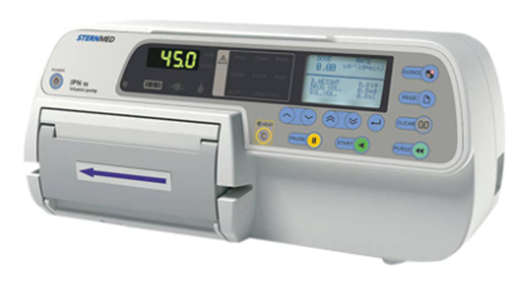

Mobile C - Arm

Brand: Sternmed

Model & Specification: IPN 56

Technical Specifications

Model: Xenox M90
Different generator power from 30 to 40kw
Rotting anode with 3000 rpm
1ms min. exposure time
6300ms max. exposure time
250 to 400 mAs
125 kV voltage
Anode made of RTM
0.6 to 0.75mm small focus
1.25to 1.3mm large focus
Manual operation
43x43cm rad field
6 cassettes storage
Touch screen 10.4” TFT display
Collimator with laser pointer and pediatric filter

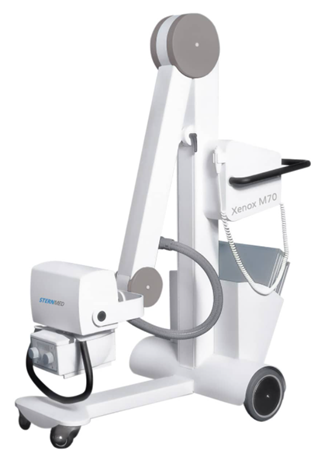

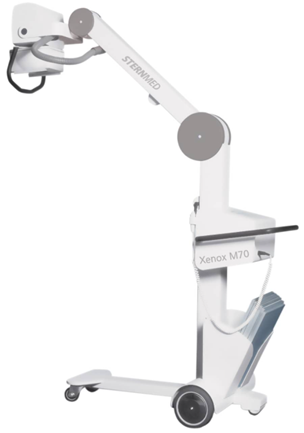

Model: Xenox M70
Generator power 4KW
Stationary anode
200 mAs
40 to 110 kV voltage
6 to 0.75mm small focus
25to 1.3mm large focus
Manual operation
43x43cm Rad field
6 cassettes storage
LCD display 20×4 characters
Collimator with laser pointer and pediatric filter

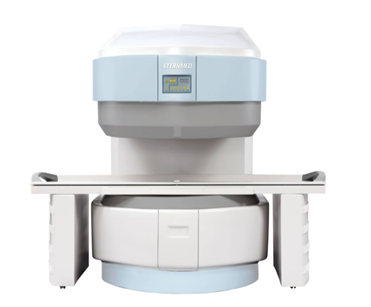

TECHNICAL SPECIFICATIONS:

Permanent magnet with automatic constant temperature system
Field strength 0.35T
C-shape magnet
Homogeneity ≤2.5ppm
Shimming method Active/Passive/Dynamic
Optimal algorithm of active shimming
Magnet vertical gap 40cm
Accessibility (Horizontal opening angle) >270°
Gradient field strength (Single Axis) 25mT/m
Gradient slew rate (Single Axis) 75mT/m/ms
FOV 20 to 400mm
2D Thickness 1mm
3D thickness 0.1mm
Air cooling gradient system
Fully digital Spectrometer

Digital Transmit and Receive RF system
4 channels RF system
Phase array coil
Dual-voice- patient communication system
patient weight max. 200Kg
Patient bed laser location system
DICOM 3.0
Fully open Magnet
Nd-Fe-B magnet
4D shimming
Eddy Zero Technology
self-regulating constant temperature
Fully Digital 4 Channel Receiving Spectrometer
Automatic coil tuning
Accurate position assist
Comprehensive scanning sequences
Advanced imaging techniques

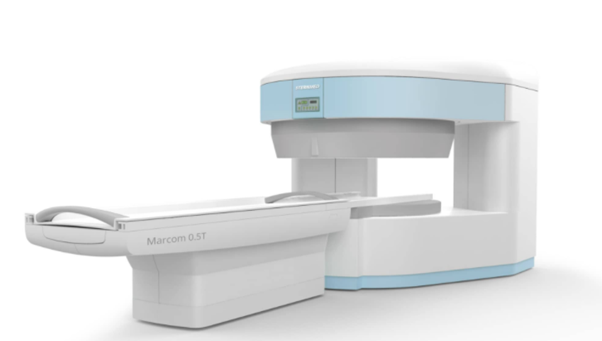

TECHNICAL SPECIFICATIONS:

Permanent magnet with automatic constant temperature system
Field strength 0.5T
Dual-column shape magnet
Homogeneity ≤2.5ppm
Shimming method Active/Passive/Dynamic
Optimal algorithm of active shimming
Magnet vertical gap 41cm
Accessibility (Horizontal opening angle) >274°
Gradient field strength (Single Axis) 25mT/m
Gradient slew rate (Single Axis) 75mT/m/ms
FOV 20 to 410mm
2D thickness 1mm
3D thickness 0.1mm
Air cooling gradient system
Fully digital Spectrometer

Digital Transmit and Receive RF system
4 channels RF system
Phase array coil
Dual-voice-patient communication system
patient weight 200Kg
Patient bed laser location system
DICOM 3.0

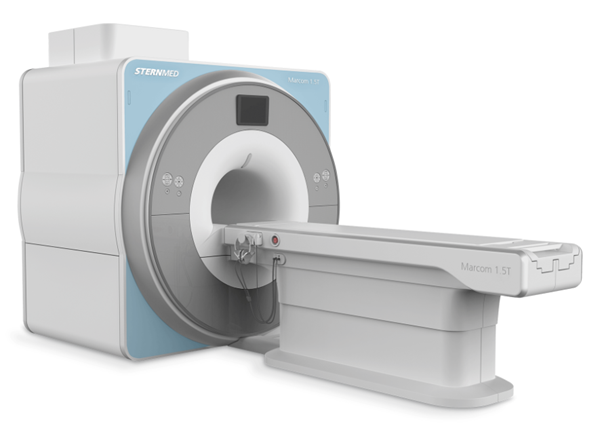

TECHNICAL SPECIFICATIONS:

Superconductive Magnet Type
Field Strength 1.5T
Active Shielding
Active + Passive + Dynamic Shimming Method
Longest time of 3D automatic dynamic shimming 30s
Magnet stability ≤1ppm/h
Inner diameter of magnet 605mm
Max. reconstruction speed (FFT) 1500 FPS
2D thickness 0.1mm
3D thickness 0.05mm
FOV 10~500 mm

Water cooling gradient
Gradient strength 40mT/m
Slew rate 150mT/m/ms
Real-time digital RF energy monitoring
RF receiver 16 channels
Each coil unit has corresponding pre-amplifier
Different Multi-channel phased array receiver coil
Patient table motor driven
Patient table horizontal movement range 185cm
Patient table maximum patient weight 200kg
DICOM 3.0

TECHNICAL SPECIFICATIONS:

32KW rated power suitable for wide clinical applications
Telescopic Arm for different X-Ray positions
User-friendly workstation with 19” touch screen Display
Advanced APR function
Advanced WIFI Flat Panel Technology-Amorphous Silicon
240 exposures with one time battery charge
Fast bedside imaging
Automatic image processing
Multiple peripheries including USB, DICOM
Cutting-edge image quality
Intelligent anti-collision design

Features
WIFI connection
Amorphous Silicon Flat panel technology
Dual display interface (VGA/DVI)
2 USB ports
Cable network interface
Four keys unlock buttons design
Dual motor driven
respectively control left and right driving wheel
19” touch screen display
500GB hard drive capacity
Windows operation system
Dicom 3.0 Interface for PACS or HIS

TECHNICAL SPECIFICATIONS:

Model: Xenox S100
Generator output power 5 kW (at 35 kV)
kV range 20/35 kV (20/40 kV optional)
kV resolution (Man & Auto mode) 0.5 kV
Lowest current time 1 mAs
mAs maximum value 640 mAs
mAs resolution (automatic) 0.1 mAs
Exposure time 02/9 s (is automatically selected depending on the selected mAs)
Safety timer 10s
Standard collimation plate 18 × 24 cm and optional collimation plates 24 × 30 cm
Optional automatic collimator 18 × 24 cm / 24 × 30 cm

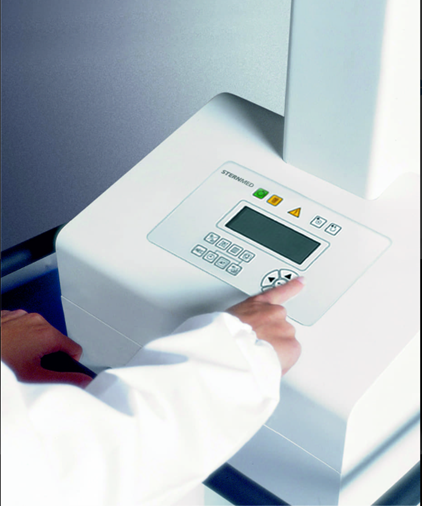

Graphic display 240 × 128 points
Anti-scatter grid formats 18 × 24 cm (standard) 24 × 30 cm (optional)
Type Grid type linear, oscillating
Manual density control 11 steps 0 +/- 5
13 programmable settings for different film-foil combinations
Short-term stability measured over 10 exposures at 28 kV 50 mAs <3%.
Motorized vertical movements
Rotation (manual or optionally motorized)
+/- 15 ° rotation (only with isocentric 3D)
Vertical range of motion (from the floor) 75 to 160 cm (stroke 85 cm)
Range of the C-arm rotation +/- 180 °
Clockwise, counterclockwise continuous motorization (optional)
Speed of the C-arm rotation in the motorized version 90 ° / 8 s with acceleration and deceleration ramp
Standard compression paddle 18 × 24/24 × 30 for normal breasts
Optional compression paddle moved 24 × 30 cm for large breasts
Compression paddle for quick unlocking
Pressure force adjustable from 70 to 200 N.

TECHNICAL SPECIFICATIONS:

Indirect Conversion
detector Technology: a-Si TFT Array + PIN Photodiode
Optional Direct Conversion
Full Field Flat Panel Detector FPD technology: Amorphous Selenium (a-Se)
Generator Output Power 5 kW (@ 35 kV)
kV range 20 / 35 kV (20/40 kV optional)
kV resolution (Man & Auto mode) 0,5 kV
Lowest Current Time 1 mAs
mAs maximum value 640 mAs
mAs resolution (Automatic) 0,1 mAs
Exposure Time 02/4.7 s (Automatically selected in function of selected mAs)
Safety timer 10s
Automatic collimator 18×24 cm/24×30 cm/10×24 for magnification
Automatic filtration (Rh/Ag)
Display GRAPHIC LCD Display 240×128 dots
Automatic Exposure Control (AEC)
Vertical Movements motorized
Motorized Rotation
+/- 15° Rotation for biopsy procedure
Range of Vertical Movement (from Floor) 75 to 160 cm (travel of 85 cm)
Range of C-Arm Rotation +/-180°
Speed of C-Arm Rotation in motorized version 90°/8 s with acceleration and deceleration ramp
Standard Compression Paddle 18×24/24×30 for normal breasts
Optional Compressor Paddle: 8×24 cm with lateral shifting for normal breasts ,9×21 cm straight for magniﬁcation,
Φ7,5 cm shifted for spot contact examination and
18×24 cm shifted for bidimensional biopsy

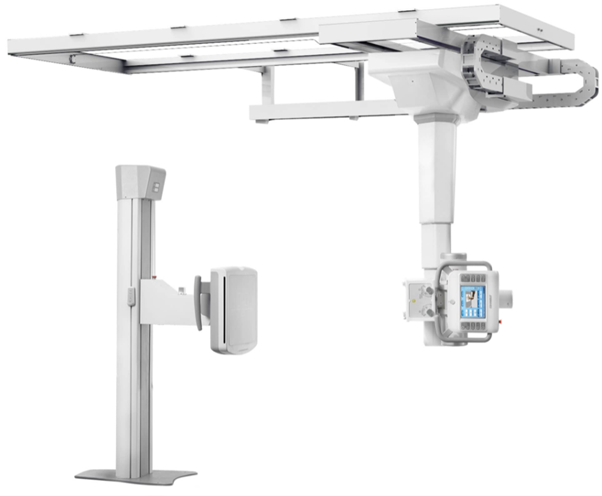

TECHNICAL SPECIFICATION

Lateral range of motion 0～1800mm
Vertical range of motion 200mm（Manual）
Rotation angle (horizontal axis) of the tube -45 ° ~ 90 °, 0 ° and 90 ° with auto-stop function
X-ray tube rotation angle (vertical axis) ± 135 °, every 90 ° locking (manual)
Range of detectors movement 400~1820mm
Detector rotation angle -20 ° ~ 90 °, electric
Remote control motion control with remote control function table
The max. loading capacity of the bed is 200Kg
Carbon fiber bed panel
Brake mode aster brakes
Tube voltage range 40~150kV
Focus 0.6/1.2mm
Anode rotation speed 2700rpm
Heat capacity 300kHU
Cooling method air-cooled
Photography current 10-640mA
Generator power 50kW
Photography time 1ms-10s
Highest KV 150KV
Grid control
AEC in three directions
Detector Pixel matrix 3072(h)X3072(v)
Image display time is 8s

TECHNICAL SPECIFICATION

Patient weight up to 300 kg
Tilting table with progressive starting +90°/ -20°
Tilting speed 4 °/sec
Lateral movement (max. speed 3 cm/sec) ±11.5 cm
Plane-film distance 7.5 cm
Film-image-intensifier distance 7.5 cm
Movement column (max. speed 13 cm/sec) 140 cm
X-ray tube rotation manually ± 90°
Focus-film distance (max. speed 3 cm/sec) from 107 cm to 153 cm
Tube angulation ±30°
Motorized compression 70n / 80n / 90n
Step by step angiography
Prepared to receive image-intensifier of 9″, 12″, 14″ &16″
Tomographic function
Linear tomographic plain-plain
Tomographic angles 8° – 15° – 30° – 40°
4 selectable tomographic speeds
S.F.D. electronic automatic
S.F.D. allows rapid series exposures
Cassettes from in both directions from 18×24 cm to 35×43 cm
Transition time between Fluoro and radiography about 1 sec.
Motorized scattered grid
On a single film is possible to have Radio and Tomo exposures
Collimator predisposition check compatibility with X-ray tube
Tube predisposition check compatibility with collimator

TECHNICAL SPECIFICATION

FEATURES

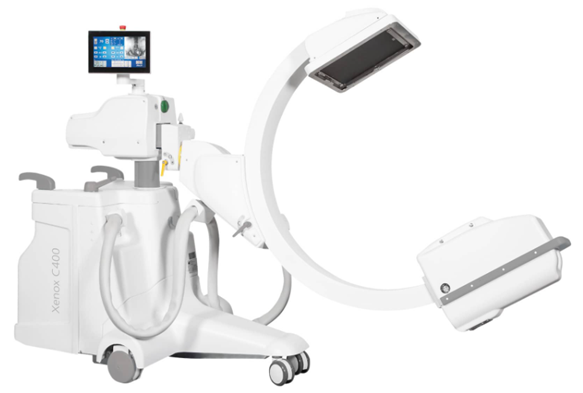

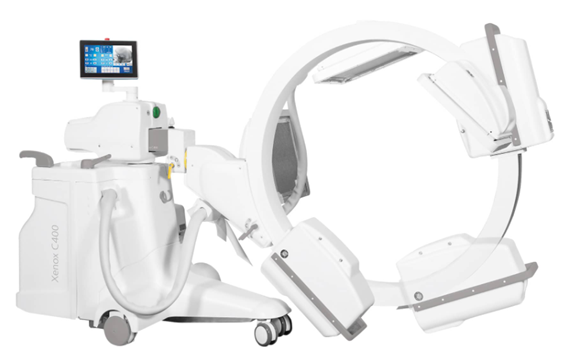

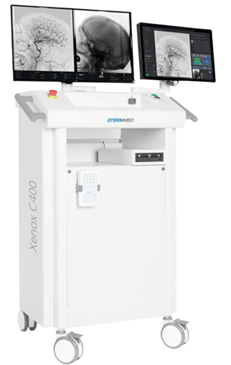

XENOX C400

Xenox C400 (with flat screen) 30 × 30 or 21 × 21 cm
12 "and 9" image intensifier options available as Xenox C300
Digital memory: 1.5k x 1.5k, with recording up to 25 fps (for Xenox C400); 1kx1k, with recording up to 30 fps (for Xenox C300)
30 kW HV generator
DUAL COOLING system for immediate and effective heat dissipation
DUAL POWER System: power reserve system
E-motion system: fully motorized C-arm movements (optional)
215 mm horizontal run (17 mm in motorized version)
Broad orbital movement 150 °
C-arm, lateral rotation: ± 180 °
10 “touchscreen control panel

Horizontal run: manual movement 210 mm; E-motion 175 mm
Motorized vertical run: 500 mm; 500 mm; 500 mm
C-arm LATERAL rotation: ± 140 ° (± 180 ° *); + 180 °; - 90 ° (-180 ° manual)
C-arm ORBITAL movement: 150 ° (105 °, -45 °); 150 ° (105 °, -45 °)
TIG: ± 10 °; ± 10 °; ± 10 °
Usable space: 810 mm; 810 mm; 810 mm
C-arm depth: 640 mm; 640 mm; 640 mm
Min / Max Height: 1455/1955 mm; 1455/1955/1955 mm
Min / Max length: 2085/2295 mm; 2110/2285 mm
Maximum width: 800 mm; 800 mm; 800 mm
S.I.D.: 1065 mm; 1065 mm; 1065 mm
Measurement without mechanical safety block

XENOX C300

Horizontal run: manually adjustable 9 ″ 210 mm; E-Motion 9 ″ 175 mm; E-Motion 12 ″ 210 mm
Motorized vertical run: 500 mm; 500 mm; 500 mm; 460 mm; 460 mm
C-arm LATERAL rotation: ± 140 ° (± 180 ° *); + 180 ° - 90 ° (-180 ° manual); + 180 ° - 90 ° (-180 ° manual)
C-arm ORBITAL movement: 135 ° (90 ° + 45 °); 135 ° (90 ° + 45 °); 115 ° (90 ° + 25 °)
TIG: ± 10 °; ± 10 °; ± 10 °; ± 10 °; ± 10 °
Usable space: 755mm; 755mm; 755mm; 708mm; 708mm
C-arm depth: 665mm; 665mm; 665mm; 640mm; 640mm
Min / Max height: 1750/2250 mm; 1750/2250 mm; 1750/2250 mm; 1805 / 2265mm
Min / Max length: 2075/2285 mm; 2100/2275 mm; 2118/2293 mm
Maximum width: 800 mm; 800 mm; 800 mm; 800 mm; 800 mm
S.I.D.: 1029 mm; 1029 mm; 1029 mm; 1009mm
Measurement received without mechanical safety block

APPLICATION

Electrophysiology studies
Angiographic procedures
Vascular surgery
Endovascular applications
Urology procedures
Catheter procedures
Neuroradiology
General surgery
Traumatology
Orthopedic
Interventional radiology

TECHNICAL SPECIFICATION

Ventilator E-vent Electronically controlled, pneumatically driven
Operating Modes VCV, PCV, SIMV(V)+PS, SIMV(P)+PS, Sigh, Cardio pulmonary
Bypass, Spont/CPAP, PRVC, Standby, Manual
Breathing frequency 1-100bpm
Minute volume (MV) 99 l/min (monitoring), 30L/min (setting)
Positive end-expiratory pressure (PEEP) OFF, 4-30 cm
Inspiration / Expiration ratio (Ti:Te) 4:1-1:9 (increment:0.5)
Pressure limiting (Pmax) PEEP+5-PEEP+70 cm H2O
Tidal Volume (Vt) 20-1500ml
Inspiratory pause (Tip:Ti) OFF, 5%-50%
SIMV Inspiratory time (Tinsp) 1-10S (increment:0.1S)
Inspiratory pressure (Pinsp) PEEP+5-PEEP+70 cm H2O
Inspiratory flow (InspFlow) 10-80 L/min
Pressure Support Level (PPS) 5-60 cm H2O
Frequency for and “OFF” Apnea-Ventilation (Freq.Min.) 1-100 bpm
Trigger 1-15L/Min
Range of fresh gas flow indicators 0-15 l/min
Total fresh gas flow meter 0-15 L/min with a mixture of O2, N2O and Air
Vaporizer Mount Selectatec ® 2 position either Drager mount or selectatec
Continuous monitoring of aspiratory O2 concentration, breathing frequency, tidal volume, minute volume, mean or plateau pressure, peak
Airway pressure as well as PEEP. In addition, all fresh gas flow information is displayed in numbers
VGA, RS232, RJ45, Debugging communications interface
Volume of CO2 absorber 1.5 liter
Volume of entire compact breathing system 2 liter + bag
Battery (supports ventilator and monitor) min. 60 minutes

TECHNICAL SPECIFICATION

Flow rate 0.1~1500 mL/h
Bolus rate600~1000 mL/h
KVO rate 0.1~5 mL/h
Ultrasonic Bubble detection with sensitivity of 25µl
Infusion history 15000 records
Preset volume 1~9999 mL
Display range of totally delivered volume 0~9999 mL
Power AC110~230V, 50~60 Hz
Inner battery: DC12V, 2300Mah
6 hours battery operation at the rate of 25mL/h
IPX4 Waterproof level
Wireless communication
Infusion mode setting Rate mode, drip mode, weight and time mode
3 mode Infusion rates: Drip/min, mL/h, time/volume

FEATURES

Tube heating option
Dual-CPU monitoring function
Body-weight mode conversion
Pressure dynamic display
Multi-direction clamp for either horizontal or vertical fixation
3-level occlusion alarm limits
Ultrasonic bubble detection
Infusion apparatus calibration
Nurse call interface
KVO function
Wireless communication function
Night mode lighting
Smart pulsation compensation function
Detection of drip sensor
Fast rate control
External DC power interface
AC and internal power indication
Standard RS232 interface
1500 history records
Waterproof

Bed w/ Side Rails and Mattress Mechanical Patient bed with lock

Brand: Mingtai
Model: S2 Double Crank hospital bed

Specifications:
Size:2080 x 900 x 500 mm
With ABS head and foot board
With aluminum side rail
With 5" deluxe castor with brakes
With I.V stand and four I.V stand sockets with drainage bag holders each side
With apparatus rack under the bed
Two functions adjusted by hand crank:
Back rest lifting angle: 80°±5°
Knee rest lifting angle: 45°±5° ·
Bearing capacity: ≥200kg
